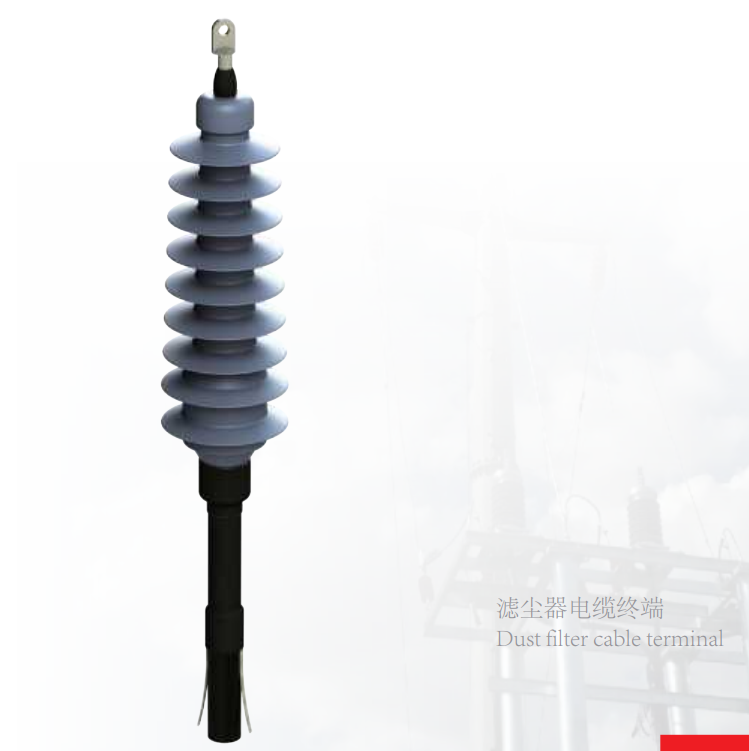

直流75kV 滤尘器电缆终端
DC 75kV Dust FilterCable Termination
产品型号
GYWZ75
Product Model:
GYWZ75
执行标准
GB/T 12706
Executive Standard:
GB/T 12706
适用环境
温度-50℃~+50℃，海拔高度小于3000m
Applicable Environment:
Temperature -50℃~+50℃, altitude less than 3000m
适用范围
用于发电厂静电除尘,冶金、化工等行业与滤尘器电缆或其它电缆配套使用
Scope of Application:
Used in power plant electrostatic dust removal, metallurgy, chemical and other industries in conjunction with filter cable or other cables
电压等级 | 直流耐压 | 耐污秽等级 | 表面泄露距离 | 预制式终端重量 | 座式终端重量(kg) |
直流(DC) 75kV | 105，15min | Ⅳ | >1300mm | ≈10kg | >30 |
Voltage Level | DC withstand voltage | Pollution level | Surface Leakage Distance | Prefabricated terminal weight | Pedestal terminal weight (kg) |
Direct Current (DC) 75kV | 105, 15min | Ⅳ | >1300mm | ≈10kg | >30 |
产品技术优势与特点
· 内部采用应力锥结构
· 确保电缆线芯绝缘外径的适配范围，保证界面紧固力
· 保证应控制部分不变形
· 有良好接地，不会产生电位悬浮
Product technical advantages and features
·Internally adopts stress cone structure
·Ensure the adaptation range of the cable core insulation outer diameter and ensure the interface tightening force
·Ensure that the controlled part is not deformed
·Has good grounding and will not produce potential suspension
