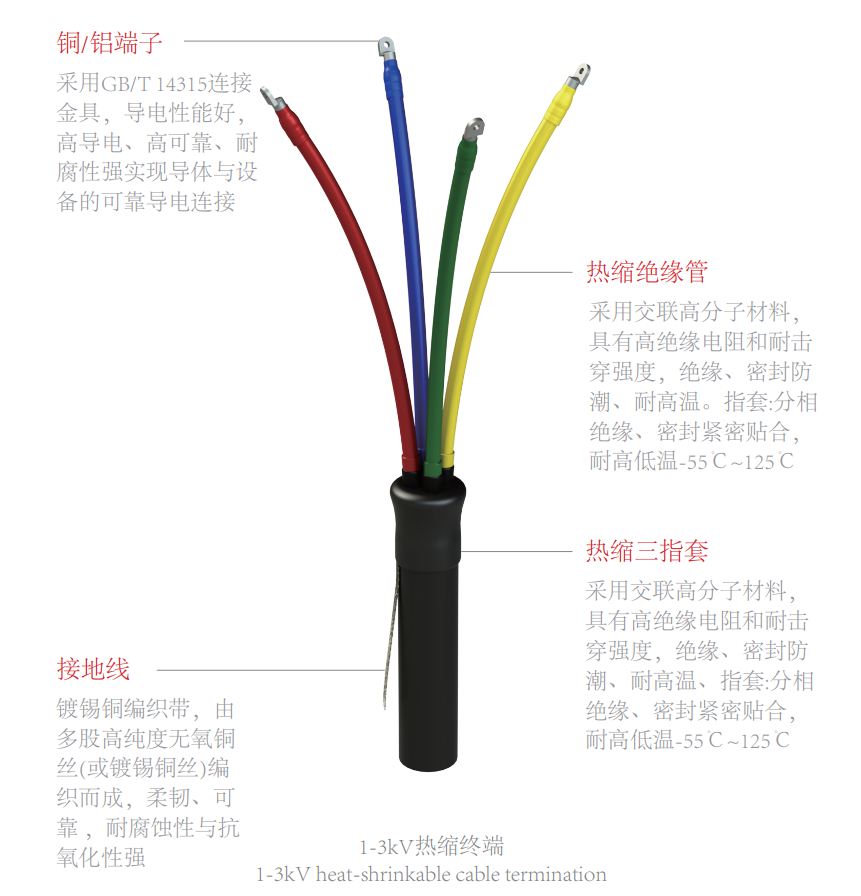

1-35kV热缩式电缆终端
1-35kV热缩式电缆终端
1-35kV Heat-ShrinkableCable Termination
执行标准
IEC60502 GBT12706
Executive standard:
IEC60502 GBT12706
适用范围
下述为标称截面，可根据工程实际情况扩展
Scope of application:
The following are nominal cross-sections, which can be expanded according to the actual engineering situation
额定电压 | 适用电缆截面 |
26/35kV | 25-1200mm² |
12/20kV，18/20(30)kV | 25-800mm² |
8.7/10kV，8.7/15kV | 25-1000mm² |
0.6/1kV | 16-630mm² |
Rated voltage | Applicable cable cross-section |
26/35kV | 25-1200mm² |
12/20kV，18/20(30)kV | 25-800mm² |
8.7/10kV，8.7/15kV | 25-1000mm² |
0.6/1kV | 16-630mm² |
