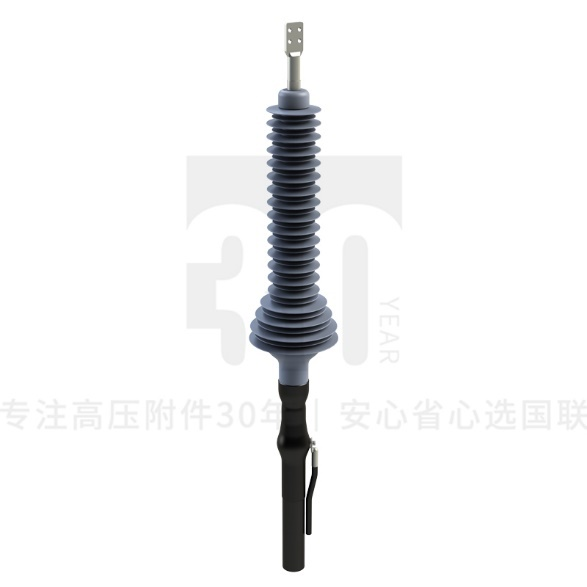

66-138kV 硅橡胶干式电缆终端
66-138kV Silicone RubberDry-Type Outer Door Termination
产品型号
硅橡胶干式电缆终端YJZWG
Product Model:
Silicone Rubber Dry-Type Cable Termination YJZWG
执行标准
IEC 60840 GB/T 11017
Executive Standard:
IEC 60840 GB/T 11017
适用环境
温度-50℃~+50℃，户内、户外安装均可，海拔高度小于4000米
Applicable environment:
Temperature -50℃~+50℃, suitable for indoor and outdoor installation, altitude less than 4000 meters
适用范围
铁塔上直接与架空线连接，或变电站与变压器、电气开关等设备连接
Scope of application:
Directly connected with overhead lines on iron towers, or connected with transformers, electrical switches and other equipment in substations
电压等级 | 最高运行电压 | 表面泄露距离 | 耐污秽等级 | 闪络距离 | 终端重量 |
110kV | 126kV | >4300mm | IV | >1370 | ≈30 |
Voltage Level | Maximum Operating Voltage | Surface Leakage Distance | Pollution level | Creepage distance | Terminal weight |
110kV | 126kV | >4300mm | IV | >1370 | ≈30 |
产品技术优势与特点
·质量可靠：进口硅橡胶整体一次成型，具有良好密封性能及可靠的绝缘性能，局放低，表面泄漏距离大，耐污性强，确保在恶劣条件和高污染地区安全运行
·安装简单：多角度安装，且体积小、重量轻，更适用于铁塔安装
·免于维护：干式终端无需填充液，杜绝泄露现象
Product technical advantages and features
·Reliable quality: The whole body is integrally formed with imported silicone rubber, which has good sealing performance and reliable insulation performance, low partial discharge, large surface leakage distance, and strong pollution resistance, ensuring safe operation in harsh conditions and highly polluted areas.
·Easy installation: Multi-angle installation, small size, and light weight, making it more suitable for iron tower installation.
·Maintenance-free: Dry-type terminals do not need to be filled with liquid, eliminating leakage.
66-138 kV干式硅橡胶终端（Ⅱ型）
66-138 kV dry silicone rubber termination (Type II)
66-138 kV干式硅橡胶终端
66-138 kV dry silicone rubber termination
