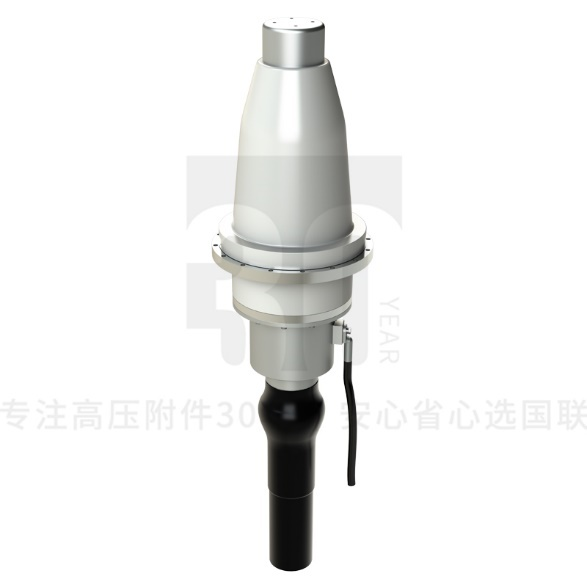

220kV干式绝缘GIS/变压器电缆终端

220kV Dry Type GIS/Transformer Termination

产品型号

干式绝缘GIS电缆终端Y]ZGG

干式绝缘变压器电缆终端YJZYG

Product Model:

Dry Insulated GIS Cable Termination Y]ZGG

Dry Insulated Transformer Cable Termination YJZYG

执行标准

IEC62067 GB/T 18890

Executive Standard:

 IEC62067 GB/T 18890

与GIS装配接口尺寸

按照1EC 62271-209,GB/T 22381

Assembly interface size with GIS:

According to 1EC 62271-209, GB/T 22381

适用环境

温度-50℃~+50℃，户内、户外安装均可

Applicable environment:

Temperature -50℃~+50℃, suitable for indoor and outdoor installation

适用范围

电缆与GIS组合电器、变压器等设备的连接

Scope of application:

 Connection of cables to GIS combined electrical appliances, transformers and other equipment

产品技术优势与特点

·应力锥采用优质进口液体硅橡胶注胶成型，并采用有限元电场分析优化设计，解决了产品的电场优化问题，以确保产品长期运行的可靠性

·终端采用全密封结构，导体与金具之间的连接采用镀银触指连接，确保终端具有良好的通流能力

·终端为干式结构，无任何填充液体，避免了产品运行中渗油油的风险

·采用应力锥弹簧紧压结构，保证了应力锥与环氧底座之间的界面压力长期稳定，对产品的长寿命提供了保障

·产品结构设计合理，体积小、重量轻、安装快捷方便

Product technical advantages and features

·The stress cone is molded with high-quality imported liquid silicone rubber and optimized by finite element electric field analysis, which solves the electric field optimization problem of the product and ensures the reliability of long-term operation of the product.

·The terminal adopts a fully sealed structure, and the connection between the conductor and the hardware uses silver-plated finger contacts to ensure that the terminal has good current carrying capacity.

·The terminal has a dry structure without any filling liquid, avoiding the risk of oil leakage during product operation.

·The stress cone spring compression structure is adopted to ensure the long-term stability of the interface pressure between the stress cone and the epoxy base, which provides a guarantee for the long life of the product.

·The product has a reasonable structural design, small size, light weight, and quick and convenient installation.

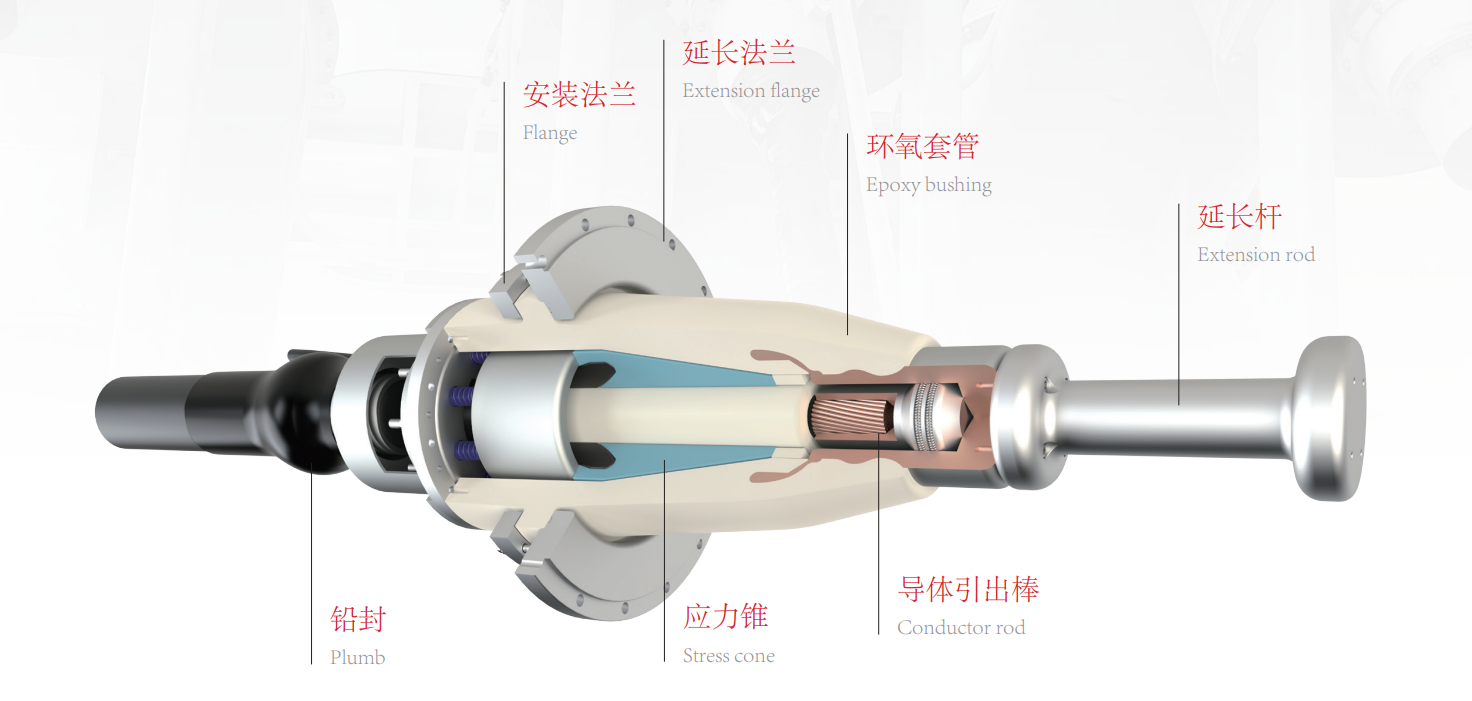

短型 620结构

Short type 620 structure

长型960结构

Long type 960 structure
