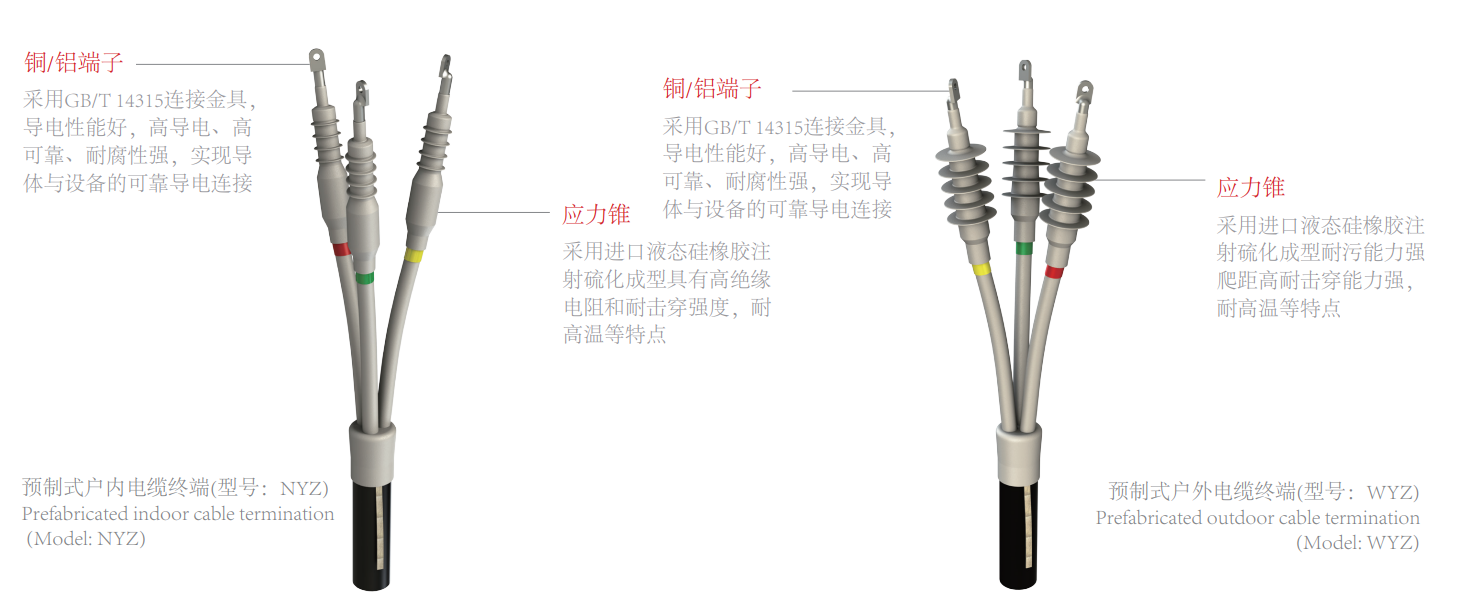

10-35kV 预制式电缆终端
10-35kV PrefabricatedCable Termination
执行标准
IEC60502 GB/T 12706
Executive Standard:
IEC60502 GB/T 12706
适用截面
50-400mm²
Applicable Section: 50-400mm²
额定电压 | 最高运行电压 | 冲击耐压水平（BIL） |
26/35kV | 40.5kV | 200kV |
12/20kV | 24kV | 125kV |
8.7/15kV | 17.5kV | 95kV |
Rated voltage | Maximum Operating Voltage | Impulse withstand voltage level (BIL) |
26/35kV | 40.5kV | 200kV |
12/20kV | 24kV | 125kV |
8.7/15kV | 17.5kV | 95kV |
产品技术优势与特点
· 采用硅橡胶主体绝缘结构，进口硅橡胶，预制应力锥一次注射成型
· 确保电缆线芯绝缘外径的适配范围，保证界面紧固力
· 保证应力控制部分不变形
· 有良好接地,不会产生电位悬浮
· 与冷缩终端相比,无需扩张，产品储存期长
Product technical advantages and features
·Adopts silicone rubber main insulation structure, imported silicone rubber, prefabricated stress cone one-time injection molding
·Ensure the adaptation range of the cable core insulation outer diameter and ensure the interface tightening force
·Ensure that the stress control part does not deform
·Has good grounding and will not produce potential suspension
·Compared with cold shrink terminals, no expansion is required, and the product has a long storage period
