户外终端油位智能监测系统

Intelligent Liquid Level Monitoring SystemFor Outdoor ermination

户外终端油位智能监测系统使用超声波对封油高度进行检测，频率高波长短、绕射现象小，另外方向性好，能够成为射线而定向传播。超声波在液体、固体中衰减很小，因而穿透能力强，尤其是在对光不透明的固体中，超声波可穿透几十米的长度，碰到杂质或界面就会有显著的反射。利用这一特性可计算封油的高度。该系统使用取电技术对设备进行供电，利用无线信号传输技术进行数据传输，这样在不改变任何施工环境的条件下完成对信号的采集和传输。

The intelligent oil level monitoring system for outdoor terminals uses ultrasonic waves to detect the oil sealing height. It has high frequency, short wavelength, and small diffraction phenomenon. In addition, it has good directivity and can be directed and propagated as a ray. Ultrasonic waves have very little attenuation in liquids and solids, so they have strong penetration ability, especially in solids that are opaque to light, ultrasonic waves can penetrate tens of meters in length, and there will be significant reflections when they encounter impurities or interfaces. This characteristic can be used to calculate the height of the oil seal. The system uses power extraction technology to supply power to the equipment, and uses wireless signal transmission technology to transmit data, so that the signal can be collected and transmitted without changing any construction environment.

产品特点

·可对瓷套管复合套管内绝缘油液位高度进行监测

·补偿装置可使密封容器内的压力维持稳定，不受绝缘油和气体热胀冷缩的影响，保证压力传感器所测数据准确

·终端具有数据远传功能，所有信号可实现远程传输

·取电方式包括:太阳能取电、CT感应取电、AC220V、DC48172V

·传输方式包括:GPRS、4G、短信、无线点对点传输:WIF、光纤以太网;GPRS、4G、短信方式需播入SIM卡

Product Features

·The insulation oil level inside the porcelain bushing composite bushing can be monitored.

·The compensation device can stabilize the pressure inside the sealed container, unaffected by the thermal expansion and contraction of insulating oil and gas, ensuring the accuracy of data measured by the pressure sensor.

·The terminal has a data remote transmission function, and all signals can be remotely transmitted.

·Power supply methods include: solar power, CT induction power, AC220V, DC48172V

·Transmission methods include: GPRS, 4G, SMS, wireless point-to-point transmission: WIF, optical fiber Ethernet; GPRS, 4G, and SMS methods require a SIM card to be inserted.

系统组成

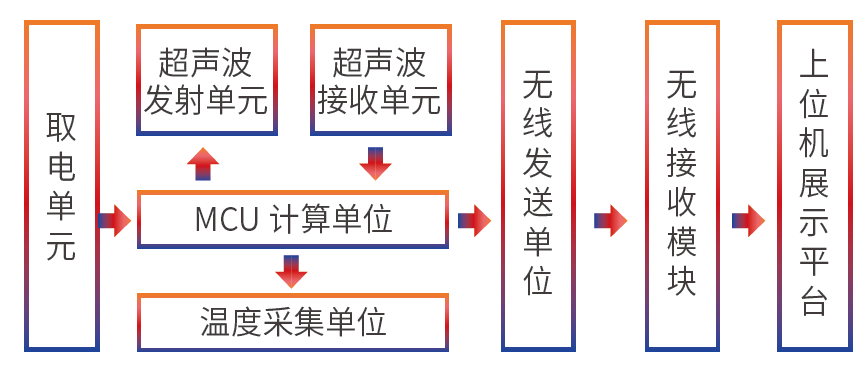

户外终端油位智能监测系统包括取电控制单元，温度监测单元，无线发送单元，超声波发射单元，超声波接收单元，MCU计算单元，无线接收模块，各单元之间的工作模式如下图:

System composition

The outdoor terminal oil level intelligent monitoring system includes a power control unit, a temperature monitoring unit, a wireless transmission unit, an ultrasonic transmitting unit, an ultrasonic receiving unit, an MCU calculation unit, and a wireless receiving module. The working mode between each unit is shown in the following figure:
